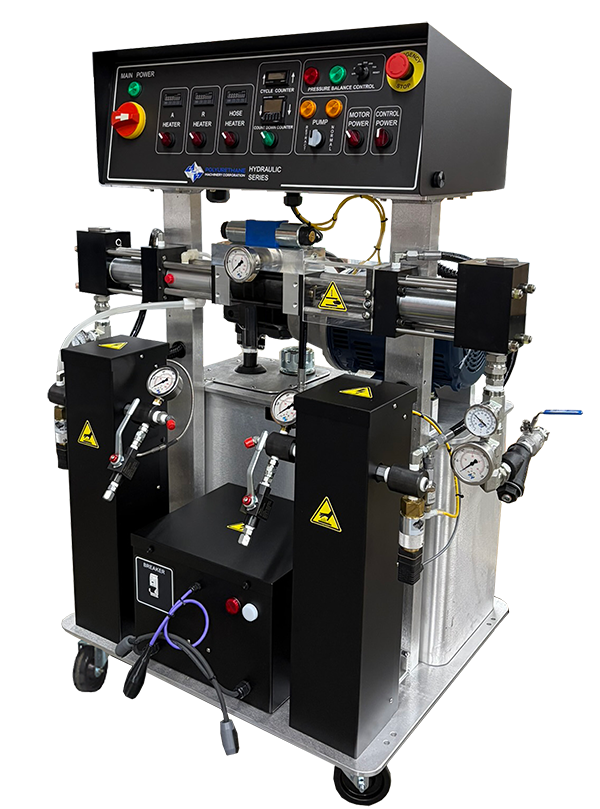

PH-25
PH-25 2000 psi (138 bar)
PH-25
Ideal for Residential Foam Insulation Applications
Includes Pressure Balance Control System and Count Down Shutoff
MODEL
PH-25
Output
30 lbs/min (13.6 kg/min)
Max Working Pressure
2,000 psi (138 bar)
Max Hose Length
310 ft (94.5 m)
Heater Wattage
8,000 watts Total (Dual htr)
10,000 watts Total (Dual htr)
12,000 watts Total (Dual htr)
10,000 watts Total (Dual htr)
12,000 watts Total (Dual htr)
Hose Heating Power
90 Volts
Max Fluid Temperature
190 F (87.7 C)
Main Voltage
1 x 208-230V, 60 Hz
Electrical @ 230V Single Phase
68A–8,000W heaters
77A–10,000W heaters
86A–12,000W heaters
77A–10,000W heaters
86A–12,000W heaters
Main Voltage
3 x 208-230V, 50/60 Hz,
3 x 380V, 50/60 Hz
3 x 380V, 50/60 Hz
Electrical @ 230V Three Phase
40A–8,000W heaters
45A–10,000W heaters
50A–12,000W heaters
45A–10,000W heaters
50A–12,000W heaters
Dimensions
40”w x 26”d x 52”h
(101cm x 66cm x 132cm)
(101cm x 66cm x 132cm)
Weight
500 lbs (228.6 kg) (113.4 kg)
