AP-2

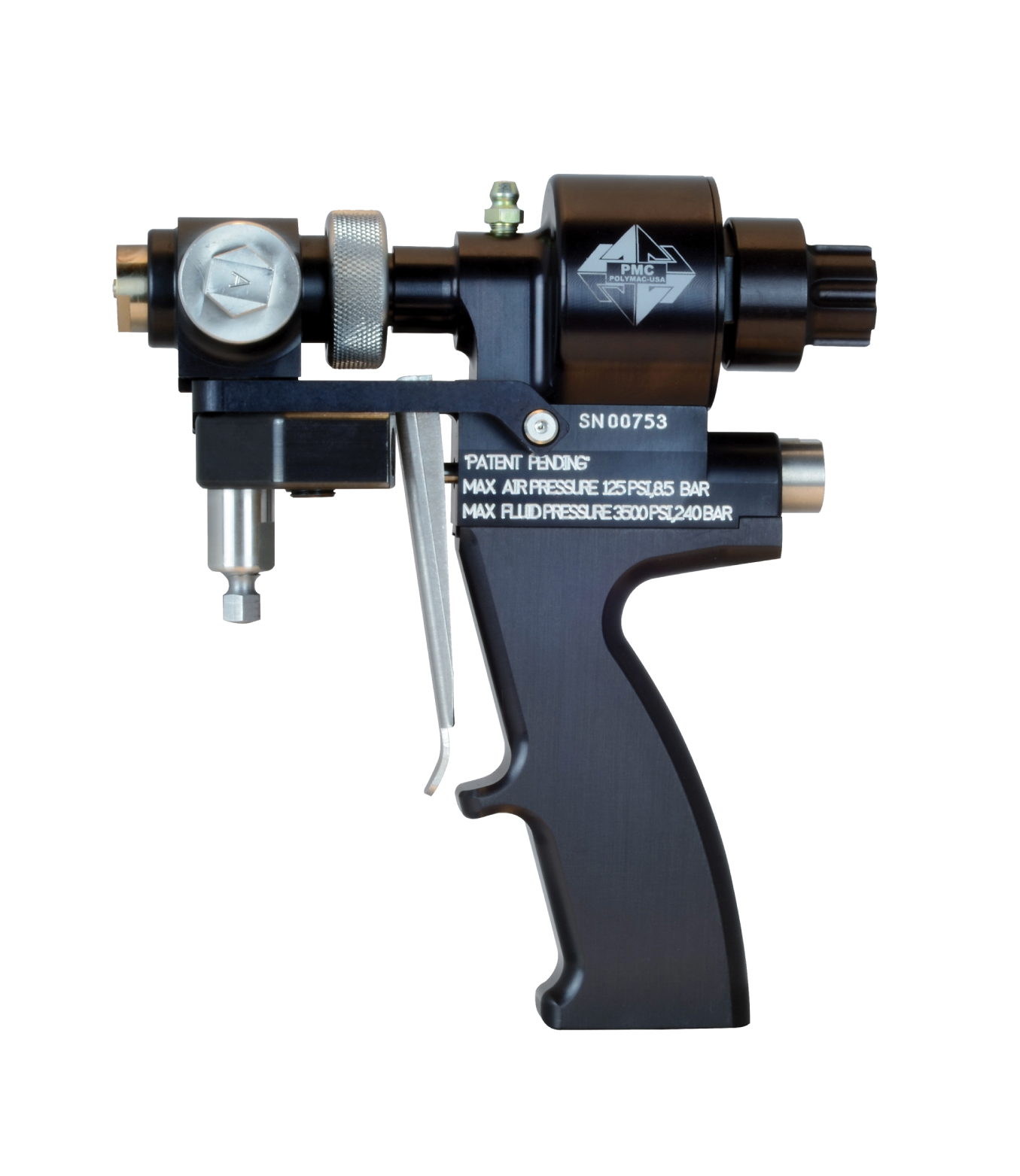

AP-2 Air Purge Spray/Pour Gun

AP-2

Category:

The pioneering, patented technology behind the design of the AP-2 Spray Gun continues to demonstrate PMC’s commitment to excellence in our products, our market and to our customers. It incorporates a patented separate chamber and Pattern Control Tip (PCT) giving the option to create a variety of spray patterns as well as the ability to create different back pressures to custom mix foam and coatings. In addition, an adhesion resistant gun finish minimizes foam and coatings buildup on the gun body and hardened coated PCT and multi-directional PCT air blasters keep the tip clean. The AP-2 is the lightest, lowest priced US manufactured air purge gun on the market. The maximum output is 40 lbs/min (18kg) and maximum pressure rating is 3500 psi (240 bar)

MODEL
AP-2
Weight (w/o coupling block)
2.2 lbs (1.01 kg)
Weight (w/coupling block)
2.9 lbs (1.30 kg)
Maximum Working Pressure
3,500 psi (240 bar)
Maximum Air Pressure
125 psi (8.6 bar)
Maximum Production (1:1 Ratio)
40 lbs/min (18 kg)
Minimum Production (1:1 Ratio)
3.3 lbs/min (1.5 kg)
Dimensions
6.6”H x 3.3”W x 7.2” L
(19cm x 7.6cm x 16.5 cm)
