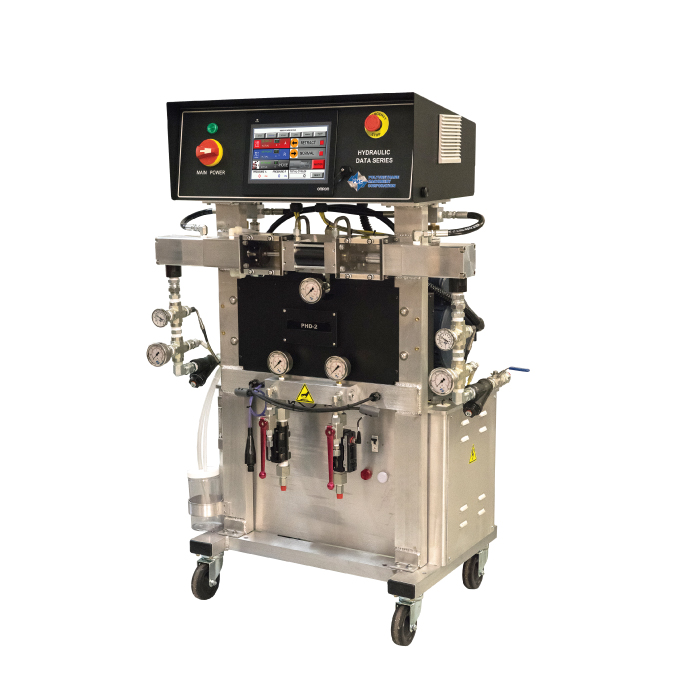

PHD-2
PHD-2 2000 psi (138 bar)
PHD-2
PMC’s Smart Machine, the PHD-2 boasts a high value for its 28 lbs/min. With data capturing hardware and software, job-specific information can be produced, making the PHD-2 a smart choice for high requirement government/DOT-level spray foam applications.
MODEL
PHD-2
Output
28 lbs/min
(12.70 kg/min)
(12.70 kg/min)
Max Working Pressure
2,000 psi (138 bar)
Max Hose Length
210 ft (64 m) w/70V Trans
310 ft (94.5 m) w/90V Trans
410 ft (121.9 m) w/120V Trans
310 ft (94.5 m) w/90V Trans
410 ft (121.9 m) w/120V Trans
Heater Wattage
7,500 watts Total (Single htr)
9,000 watts Total (Single htr)
10,500 watts Total (Single htr)
14,000 watts (Single htr)
9,000 watts Total (Single htr)
10,500 watts Total (Single htr)
14,000 watts (Single htr)
Hose Heating Power
70 Volt, 90 Volt or 120 Volt
Max Fluid Temperature
190 °F (87.7 °C)
Weight (w/o Hydraulic Fluid)
415 lbs (188 kg) 415 lbs (188 kg)
Electrical @ 7.5KW Heater
42 amps @ 3 x 230V
63 amps @ 1 x 230V
63 amps @ 1 x 230V
Electrical @ 9KW Heaters
46 amps @ 3 x 230V
75 amps @ 1 x 230V
75 amps @ 1 x 230V
Electrical @ 10.5KW Heaters
49 amps @ 3 x 230V
82 amps @ 1 x 230V
82 amps @ 1 x 230V
Electrical @ 14KW Heaters
58 amps @ 3 x 230V 9
97 amps @ 1 x 230V
97 amps @ 1 x 230V
